Windographer 6.2

Oct 06, 2026

Introducing Windographer 6.2

More control over uncertainty.
More confidence in every decision.

Build more representative long-term references, test vertical extrapolation before creating sensors and apply automated tasks with greater precision.

Request a demo Explore the release
ReferencesValidationAutomation
One connected WRA workflowBetter evidence behind every analytical decision.

Designed around the analyst

Three improvements. One clearer path from data to decision.

Windographer 6.2 brings new tools for long-term reference design, vertical extrapolation validation and targeted automation into the same familiar environment.

01

Composite Reference Time-series

Multiple perspectives on the long-term climate. One controlled reference for LTA.

No single reference dataset represents every site equally well. Blend complementary, site-representative references to balance source-specific biases and create a more robust long-term signal.

Choose how each reference contributes: equal weights, distance from the site, quality against onsite measurements, statistical optimization or expert-defined weights. Quality weighting can consider R², RMSE and bias, including seasonal and directional performance.

Data Downloader→Composite reference→Long-Term Adjustment

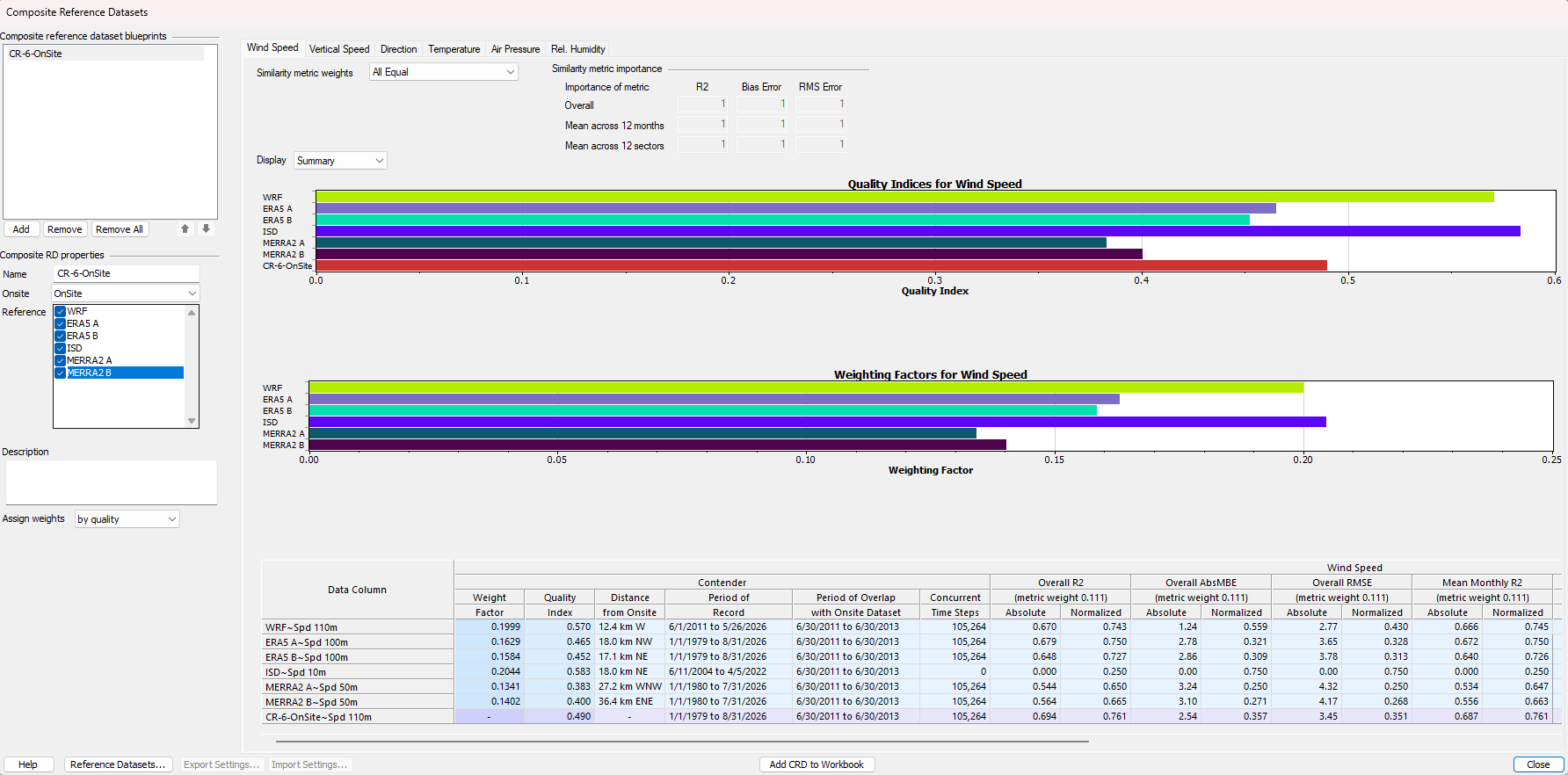

Composite Reference Builder showing reference weights and quality metrics
Select, evaluate and combine long-term references in one workspace.

02

Extrapolation Test Results

Test vertical extrapolation before creating the sensor.

Compare a proposed extrapolated series against measurements from another height or a nearby remote-sensing device. Review the statistical results, refine the configuration and repeat the test before generating new sensors.

Faster validationFewer unnecessary sensorsMore informed extrapolation

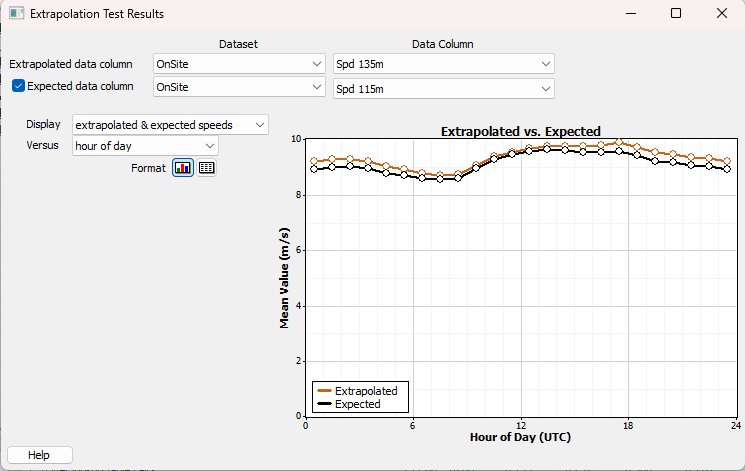

Extrapolation Test Results comparing extrapolated and expected wind speeds
See how the proposed series compares before applying the settings.

03

Workflow improvements

More precise conditions. Smarter Workflows.

Apply each automated action only where it belongs, synchronize targeted datasets and keep recurring reports current.

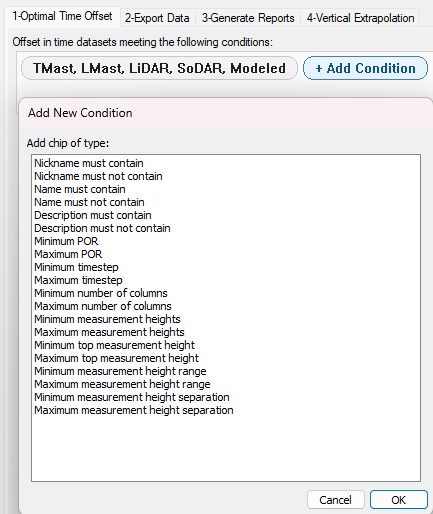

Workflow condition selector with dataset targeting criteria
Advanced Dataset Targeting

Apply every action to exactly the right datasets.

Go beyond dataset type. Target actions by nickname, name, description, period of record, timestep, column count and detailed measurement-height criteria.

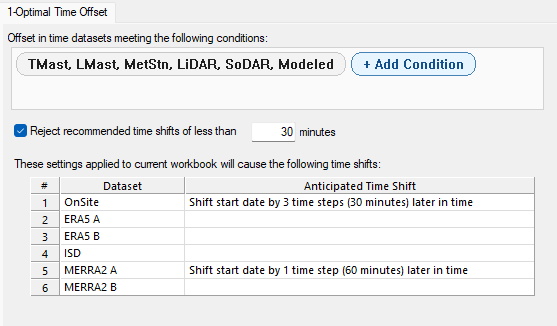

Optimal Time Offset workflow task with anticipated time shifts
Optimal Time Offset

Automatically synchronize targeted datasets.

Use the first dataset in the Windog file as the reference, identify the shift providing the strongest correlation and apply the recommended correction.

Report period options Last Month and Last Complete Calendar Month
Dynamic reporting periods

Report the right period, automatically.

Choose Last Month or Last Complete Calendar Month to keep Workflow-generated recurring reports current without manually updating dates.

Windographer 6.2

Better evidence. Smarter workflows. More confident WRA.

Representative
Build the reference strategy around the site.

Validated
Test settings before creating results.

Targeted
Automate with precise dataset conditions.

Ready to explore Windographer 6.2?

Bring more control and confidence to your WRA workflow.

Learn more and request a demo Explore Windographer Windographer Monitor
