RAMP 2.0

Advanced Wind Analytics

High-accuracy modelling to explain production gaps.

Powered by Windographer, Windnavigator and Openwind

RAMP 2.0 helps wind asset teams understand, quantify and explain the bias between pre-construction analysis and operational figures. Its model-based approach combines a Met Mast Digital Twin (MMDT), turbine-level Reference Wind Speed (RWS) and a site-specific Wind Farm Digital Twin (WFDT) to provide defensible, high-resolution performance attribution.

MMDT RWS WFDT
Request a demo Explore the method

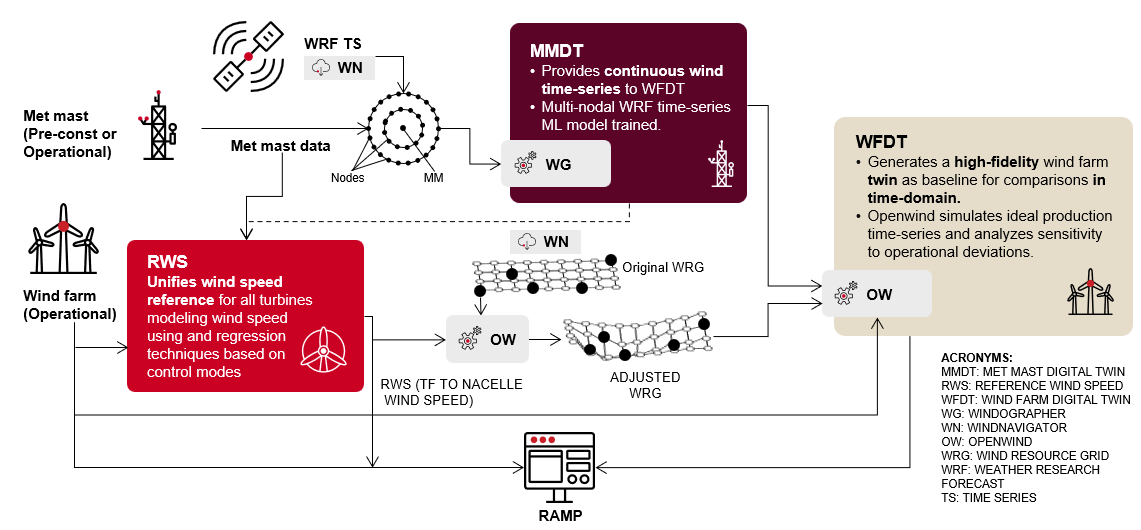

Method Overview

RAMP 2.0 connects resource modeling, operational wind references and wind farm simulation in a traceable workflow. The result is a clearer view of what changed between the pre-construction view of the asset and the performance observed in operation.

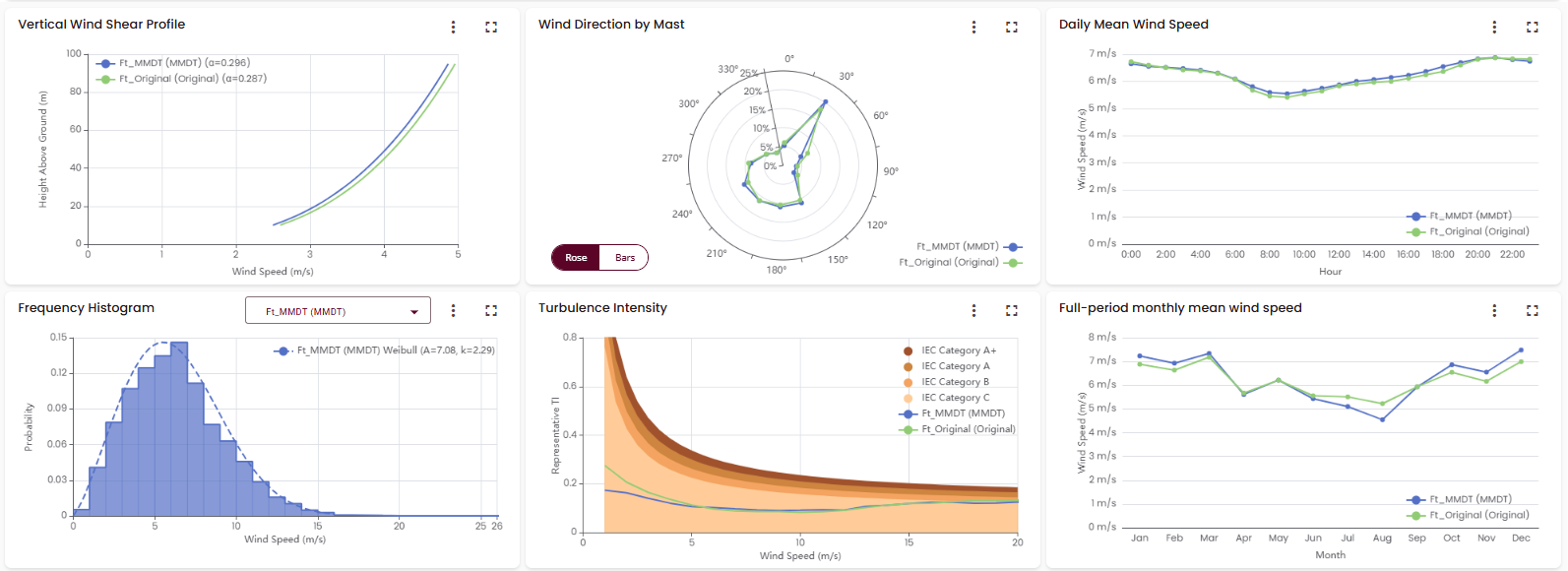

Met Mast Digital Twin (MMDT)

Creates continuous, site-specific wind time series that represent met-mast conditions without requiring permanent on-site hardware.

  • Uses WRF time series refined with machine learning
  • Supports long-term, gap-free operational analysis
  • Improves the wind reference used in downstream modeling
Reference Wind Speed (RWS)

Builds a consistent turbine-level wind reference by combining MMDT information with SCADA-based operational signals.

  • Reduces the impact of biased nacelle measurements
  • Accounts for control modes and turbine behavior
  • Enables consistent turbine-to-turbine comparison
Wind Farm Digital Twin (WFDT)

Represents the wind farm in time-domain to create an ideal production baseline for comparing expected and actual performance.

  • Uses Openwind-based flow and wake modeling
  • Generates ideal production time series
  • Supports sensitivity analysis and operational diagnostics

Deliverables

RAMP 2.0 delivers the modeled time series and analytical outputs needed to explain energy gaps with confidence and to support portfolio-level decision making.

Time-series Data
  • MMDT free-stream wind time series
  • RWS turbine-level wind references
  • WFDT ideal production time series
Analysis Outputs

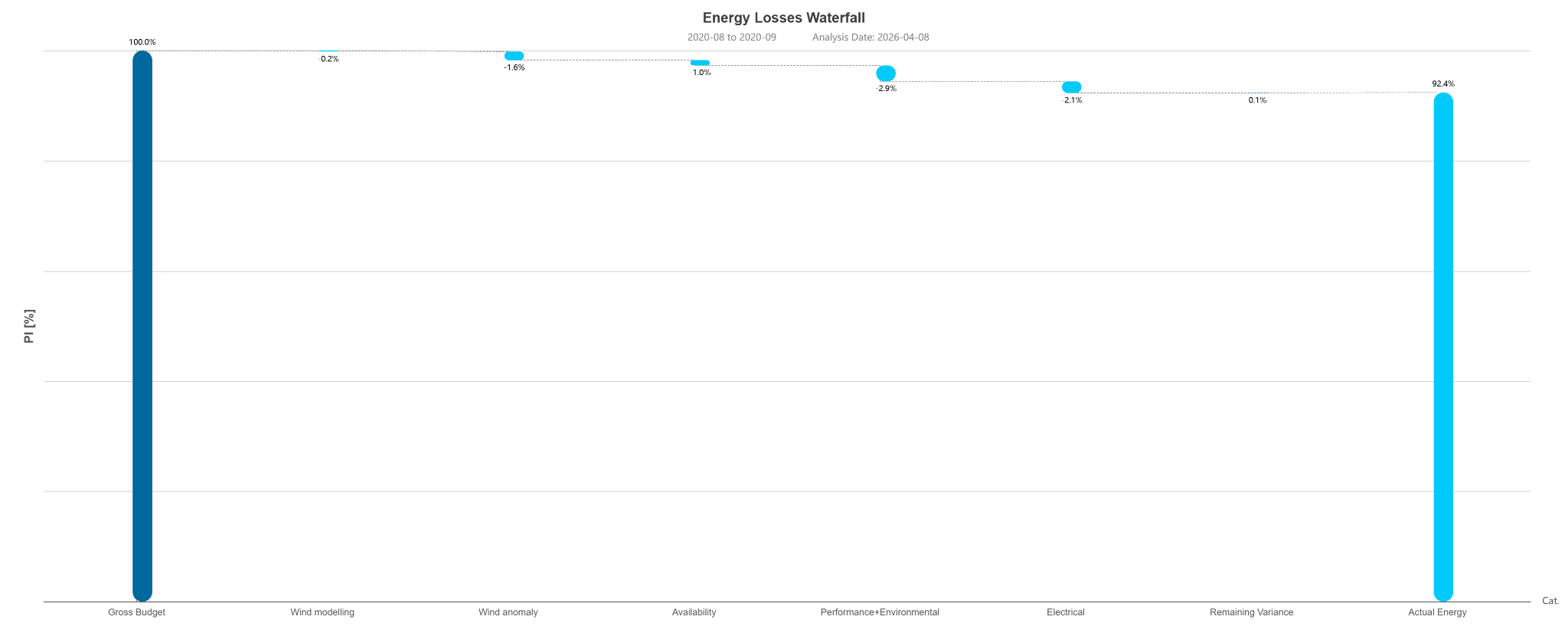

  • Transparent comparison of ideal production and actual operational figures
  • Quantification of wind resource, wake, availability, electrical and operational effects
  • Export-ready data for reporting, technical review and BI workflows

Integration & Compatibility

RAMP 2.0 is designed to align with UL Solutions' wind software ecosystem, including Windnavigator resource data, Windographer analytics and Openwind layout modeling.

Consistent inputs

Uses high-quality wind resource grids, time series and operational data to keep assumptions traceable across the analysis chain.

Engineering workflow

Provides outputs that can support technical review, downstream reporting and dedicated business intelligence dashboards.

Portfolio scale

Applies a consistent modeling framework across sites, layouts and turbine types to support repeatable performance assessment.

Request a RAMP 2.0 demo

See how RAMP 2.0 can help explain the gap between pre-construction expectations and operational results using MMDT, RWS and WFDT.

Contact UL Solutions
