Openwind v5027 New Features
Apr 20, 2026
Major advances in offshore wind modeling, enhanced platform integration, and reworked loss functions.
Highlights of the new Openwind update include:

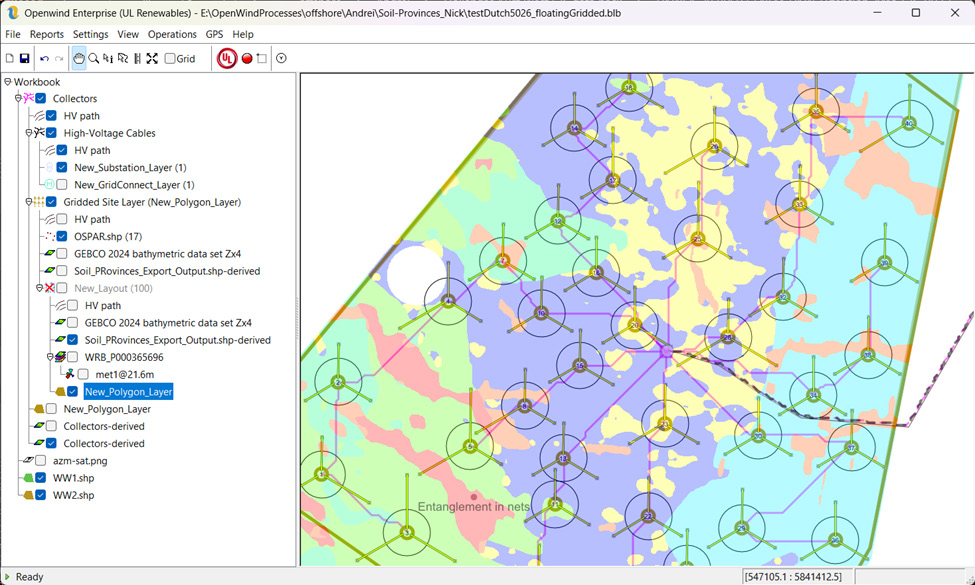

New Offshore Functionality
• Definition of seabed soil profiles

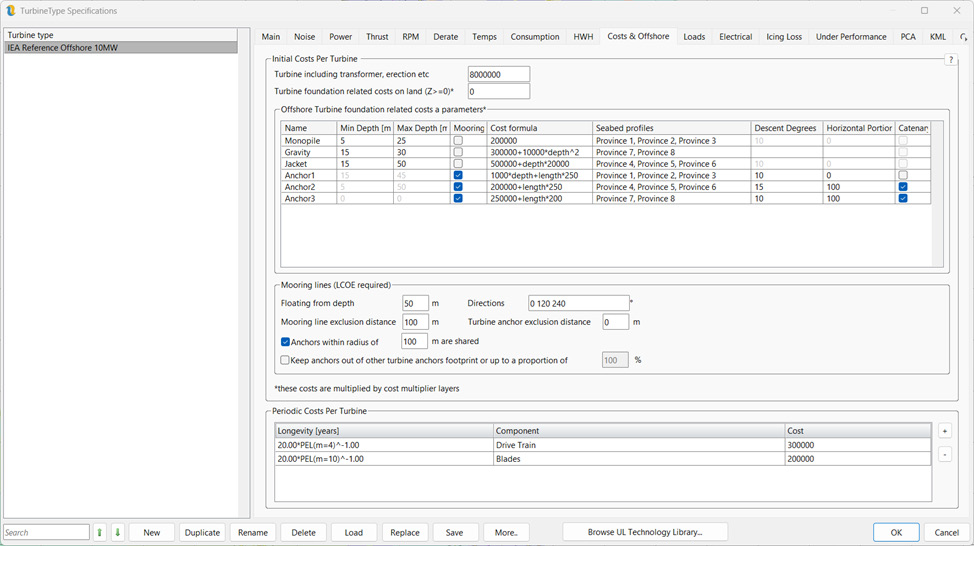

• Fixed foundation costs can be driven by water depth as well as seabed soil profile
• Floating turbine anchor placement and costs can be driven by water depth, buildable area and seabed soil profile type.
• Users can define an anchor footprint which is then respected by other turbine anchors.
• Improved capacitated substation behavior now able to handle three or more capacitated substations
• Fixed foundation costs can be driven by water depth as well as seabed soil profile
• Floating turbine anchor placement and costs can be driven by water depth, buildable area and seabed soil profile type.
• Users can define an anchor footprint which is then respected by other turbine anchors.
• Improved capacitated substation behavior now able to handle three or more capacitated substations

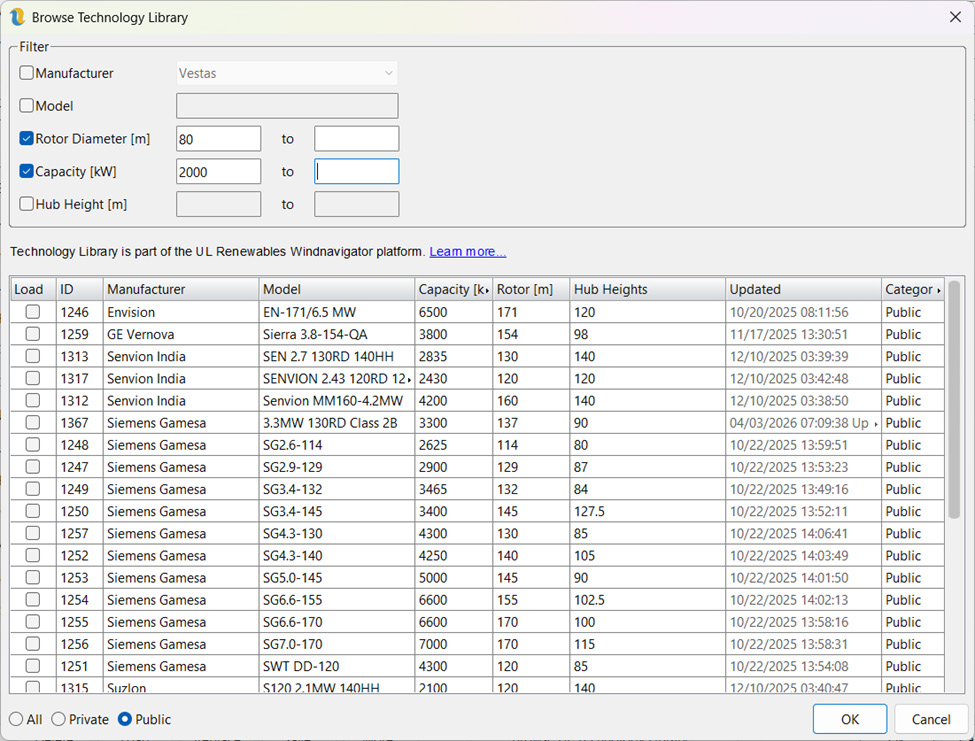

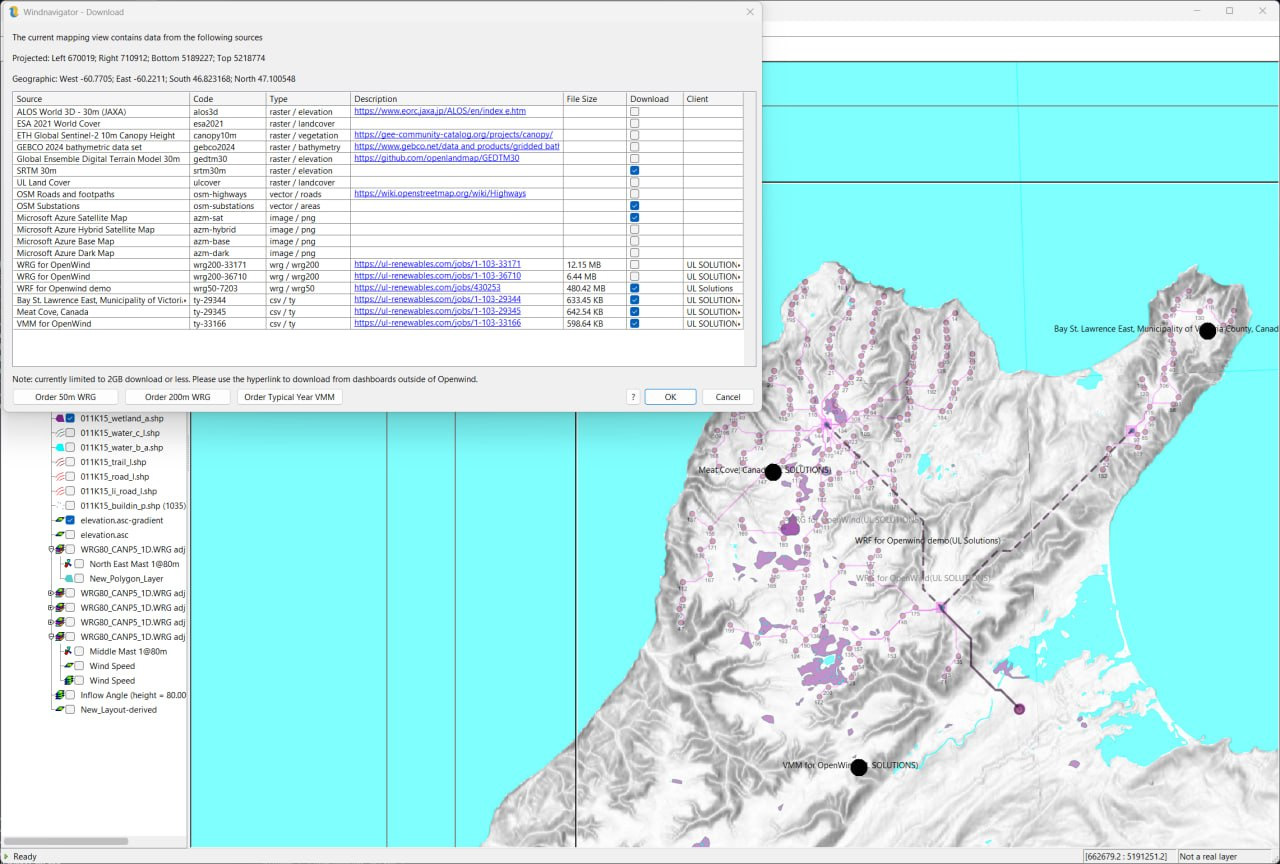

Improved & expanded integration with WindNavigator
• Browse UL Turbine Technology Library
• Upload and download WRGs and WRBs
• Download existing turbines
• Download GIS layers
Roads
Transmission
Substations
• Download terrain, landcover and canopy height
• Order WRG200
• Order typical year virtual met masts (TYVMM)
• Order SiteWind runs
• Upload and download WRGs and WRBs
• Download existing turbines
• Download GIS layers
Roads
Transmission
Substations
• Download terrain, landcover and canopy height
• Order WRG200
• Order typical year virtual met masts (TYVMM)
• Order SiteWind runs

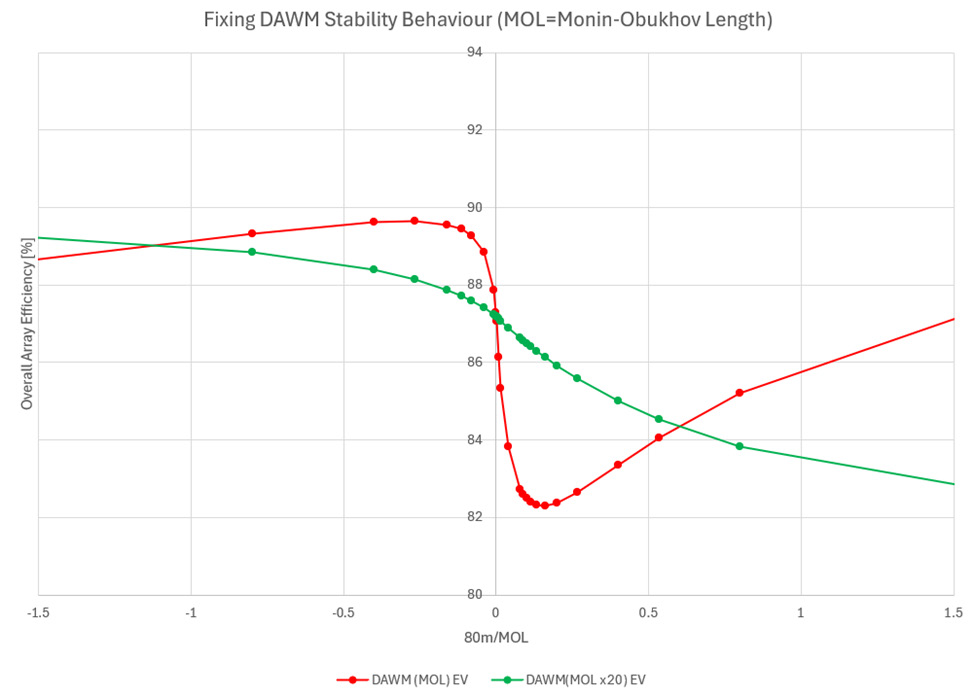

Improved DAWM behavior in response to changes in atmospheric stability
• Validated support for IEC61400-16 turbine type file export
• Improvements to creating IEC61400-15-1 inputs
• Improved and expanded IEC61400-1 section 11 report
• Updated noise model to support for ISO9613:2024 (with legacy support for ISO9613:1996)

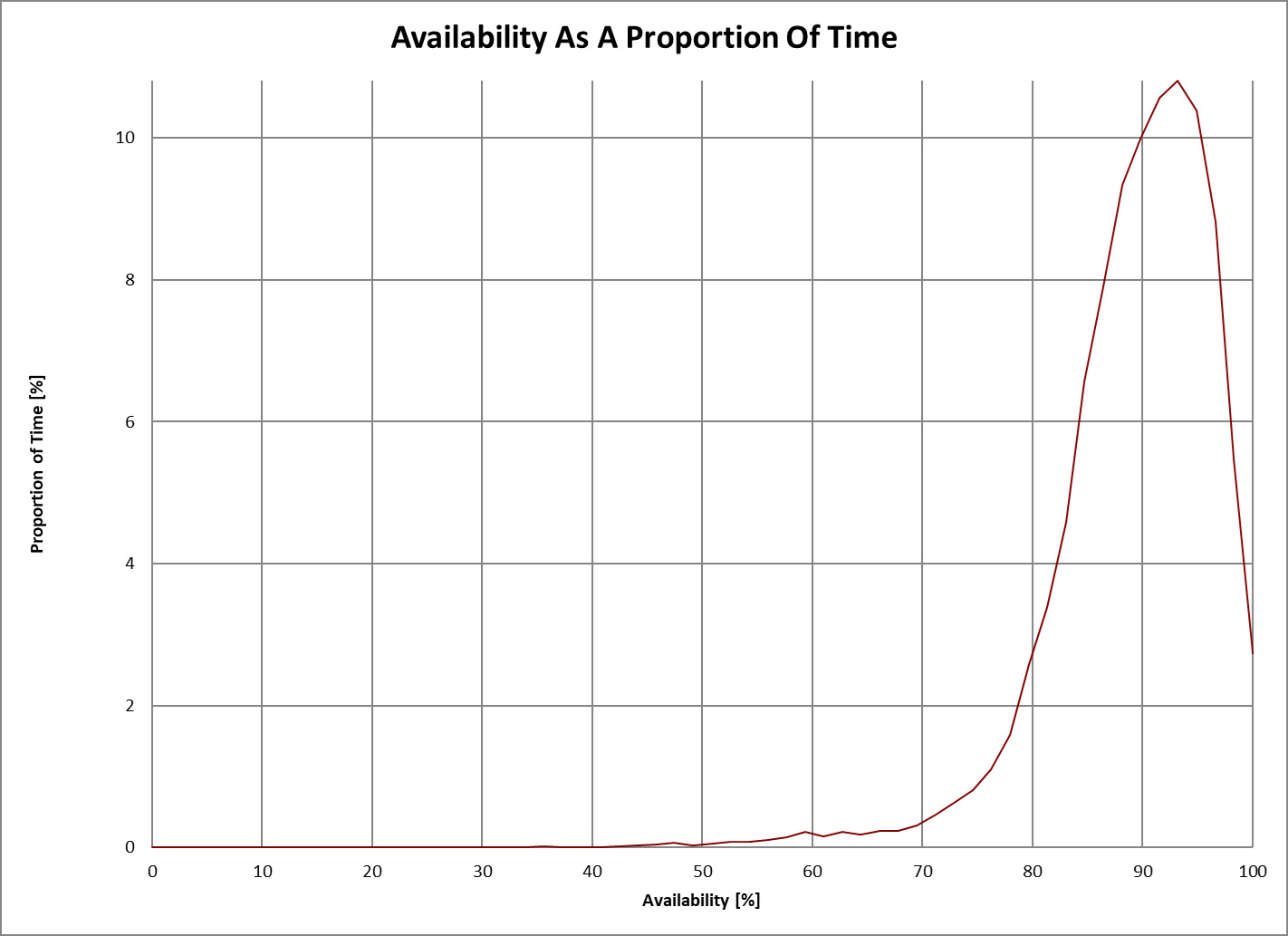

• Improved Markov chain availability modeling
• Improvements to creating IEC61400-15-1 inputs
• Improved and expanded IEC61400-1 section 11 report
• Updated noise model to support for ISO9613:2024 (with legacy support for ISO9613:1996)
• Improved Markov chain availability modeling
Advanced Loss Modeling
• Overhauled time-series loss functions
• Define a fixed underperformance loss per turbine type
• Use a matrix of power scale factors by wind speed to model a variable underperformance loss
• Track partial availability as derating loss

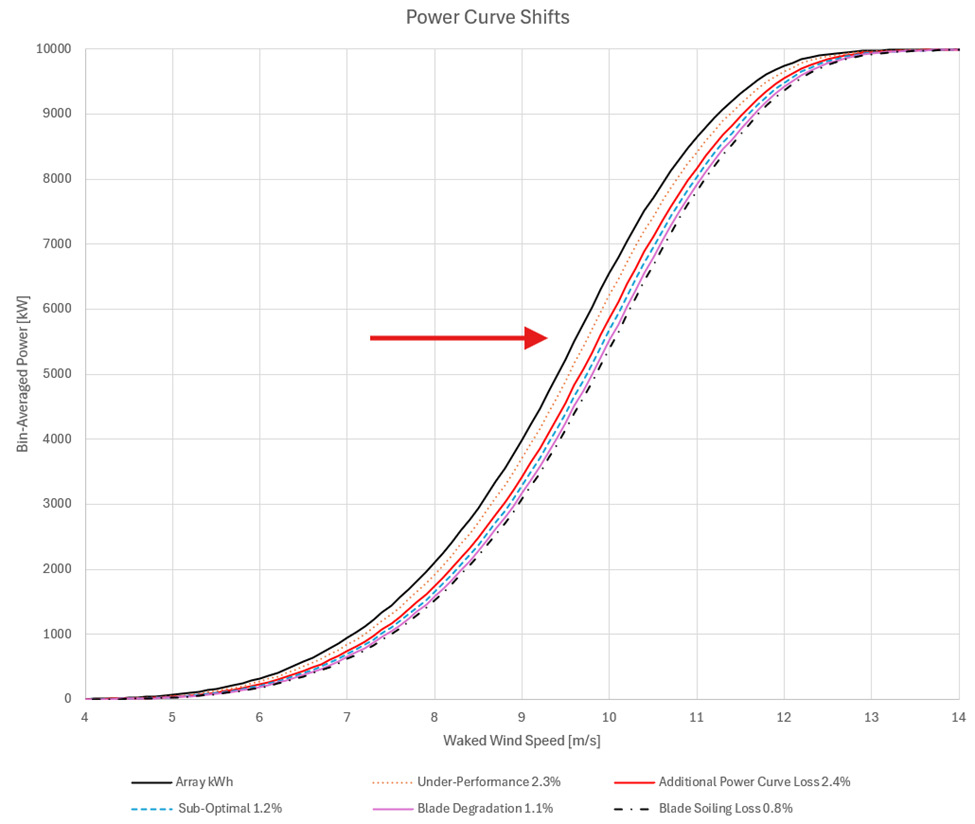

• Model other fixed performance losses as power curve shifts
Blade soiling loss (user-defined or raster-based)
Blade degradation loss (user-defined or raster-based)
Additional power curve loss
Sub-optimal performance loss
Performance losses can be explicitly user-defined whilst still allowing plant power production to hit 100% minus electrical losses.
• Define a fixed underperformance loss per turbine type
• Use a matrix of power scale factors by wind speed to model a variable underperformance loss
• Track partial availability as derating loss
• Model other fixed performance losses as power curve shifts
Blade soiling loss (user-defined or raster-based)
Blade degradation loss (user-defined or raster-based)
Additional power curve loss
Sub-optimal performance loss
Performance losses can be explicitly user-defined whilst still allowing plant power production to hit 100% minus electrical losses.
